MVR plate evaporator
1. High heat transfer efficiency.
2. small footprint, easy to maintain.
3. the equipment heat exchange area can be adjusted.
4. small heat loss.
5. less pressure loss.
6.safe and reliable use.
7. plate heat exchanger has outstanding advantages, and its disadvantages are also obvious. It is suitable for evaporation and concentration of heat sensitive liquid medicine and food.
Craftsmanship and Quality
Lean design Energy efficient
Advanced aerodynamic design and efficient motor systems provide stable and efficient air flow in various production processes. By optimizing airflow distribution and reducing energy loss, the Shuangjian blower can significantly improve energy efficiency.
Rigorous process to ensure reliable performance of equipment
Shuangjian blower adopts strict standards and measures in quality control. From raw materials into the factory to finished products, every link has undergone strict quality testing and monitoring. Through advanced testing equipment.
International high standard configuration
High quality accessory selection and reliability design provide sufficient equipment strength and durability for the Shuangjian blower, and reduce maintenance costs. Selection of domestic and foreign well-known brand accessories.
Easy maintenance to improve equipment operation rate
The fan is equipped with sliding bearing, thin oil station, high fuel tank and a complete set of safety interlock protection system, and the shell is horizontally divided, and the fan inlet and outlet pipes are horizontally connected with the shell inlet.
Digital processing, higher precision
Hubei Shuangjian has dozens of CNC machine tool production lines and robot welding equipment, from steel plate cutting, bending, planing, milling to painting, all realize digital control, high processing precision, some core components accurate.
Original parts supply, running worry free
Hubei Shuangjian as a set of production and sales in one of the strength of the enterprise, we are responsible for their production of each piece of equipment, to provide customers.
Product Details
Main features
1. High heat transfer efficiency: Plate ripple design with a high film thermal conductivity as the goal, the heat transfer efficiency is very high, generally speaking, the heat transfer coefficient of the plate evaporator K value in 3000 to 6000w/㎡. In the range of ℃, this indicates that the plate evaporator only needs 1/2 to 1/4 of the shell and tube evaporator area to achieve the same evaporation effect.
2. small footprint, easy to maintain: The structure of the plate evaporator is extremely compact, under the condition of the same evaporation amount, the space occupied is only 1/3 to 1/4 of the tubular falling film evaporator, and its height is only about 1/10 of the tubular falling film evaporator, and the maintenance only needs to loosen the clamping screw, which can fully contact the surface of the heat exchange plate within the original space, and it is convenient to disassemble and assemble.
3. the equipment heat exchange area can be adjusted: The size of each heat element (sheet), small up to 0.03 square meters, large up to more than 4 square meters, the heat exchange area of each equipment, small up to 0.5 square meters, the largest up to 1900 square meters. Because the heat exchange plate is easy to disassemble, the most appropriate heat transfer effect and capacity can be obtained by adjusting the number of heat exchange plates or changing the process. As long as the evaporator intermediate frame is used, the heat exchange plate components have a variety of unique functions. This provides the user with the possibility to change the throughput and the heat transfer coefficient K value at any time or to add new functions.
4. small heat loss: Because of its compact structure and small size, the outer area of the evaporator is also small (compared with the tubular falling film evaporator), so the heat loss is also small, usually the equipment no longer needs insulation.
5. less pressure loss: Under the condition of the same heat transfer coefficient, the pressure loss of the plate evaporator can be controlled in the range of 1/3 of the tube evaporator through the reasonable selection of the flow rate.
6.safe and reliable use: Two seals are designed on the sealing equipment between the plates, and a signal hole is also provided. Once a leak occurs, it can be excluded from the outside of the evaporator, which not only prevents the mixing of steam and material, but also plays the role of safety alarm.
7. plate heat exchanger has outstanding advantages, and its disadvantages are also obvious. It is suitable for evaporation and concentration of heat sensitive liquid medicine and food.
Main application of MVR plate evaporator:
It is suitable for evaporation and concentration of heat sensitive liquid medicine and food.

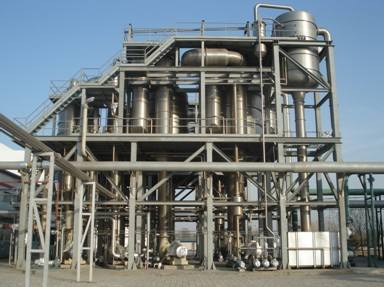

Product Atlas
Product Parameters
.jpg)
.jpg)
.jpg)
Maintenance
1. Daily inspection and maintenance
Appearance inspection: Check the appearance of the blower regularly to confirm that there is no damage, deformation or rust.
Running sound: Monitor the running sound of the blower. If there is abnormal sound, stop the machine immediately for inspection.
Vibration: Check the vibration of the blower regularly to ensure that it is within the allowed vibration range.
2.Lubrication system maintenance
Lubricating oil inspection: check the oil level and quality of lubricating oil regularly to ensure that it is within the specified range, and replace the deteriorated lubricating oil in time.
Grease replacement: For the parts that use grease, it is necessary to replace it regularly to ensure the lubrication effect.
3.Cooling system maintenance
Cooling water inspection: For the blower with water cooling, it is necessary to regularly check the flow rate and temperature of the cooling water to ensure that the cooling effect is good.
Cooler cleaning: Clean the cooler regularly to prevent its blockage affecting the heat dissipation effect.
4.Internal inspection and maintenance
Internal cleaning: Regularly clean the dust and debris inside the blower to avoid damage to the blower.
Fastener inspection: Check the fasteners inside the blower to ensure that they are tight and not loose.
5.Electrical system maintenance
Motor inspection: Check the running status of the motor regularly to ensure its normal operation.
Cable check: Check the connection and insulation of the cable to ensure that there is no damage or aging.
6.Shutdown and maintenance
Shutdown cleaning: When the blower is shut down, thoroughly clean the dust and dirt inside and outside the blower.
Downtime inspection: Use downtime to conduct a thorough inspection of the blower to find and deal with potential problems.
Through the attention and execution of these maintenance details of the blower, it can ensure its long-term stable operation, extend its service life, and improve production efficiency.
Design and development capability
Our company has strong technical research and development capabilities, and has established several research workstations to bring sustained vitality to the improvement and progress of Shuangjian's technical research and development capabilities.
Strict testing
Supporting auxiliary support technology and functional control technology for modern design and manufacturing of new wind turbines, establishing a network CAD system, using deformable simulation analysis software to achieve intelligent product design and process design.
Quality assurance
Our company has developed dozens of quality management documents in accordance with the requirements of the ISO9001:2000 quality management system, including the Quality Manual, Procedure Documents, Incoming Inspection Specification, Process Inspection Specification, Finished Product Inspection Specification, Equipment Operation Regulations, Assembly Operation Manual, and Test Equipment Operation Manual.
